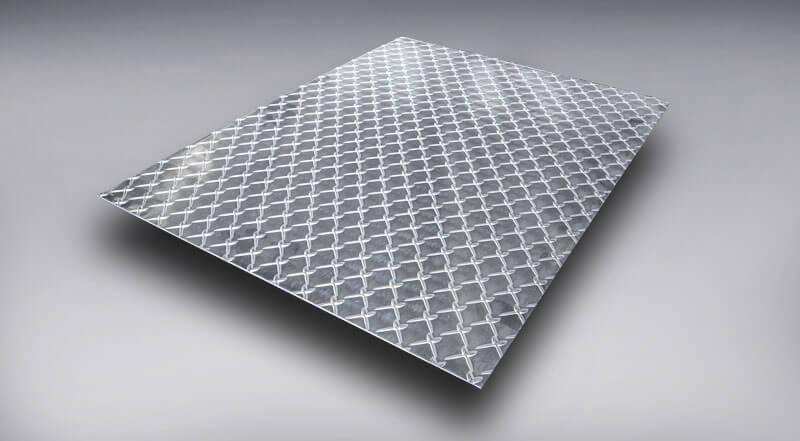

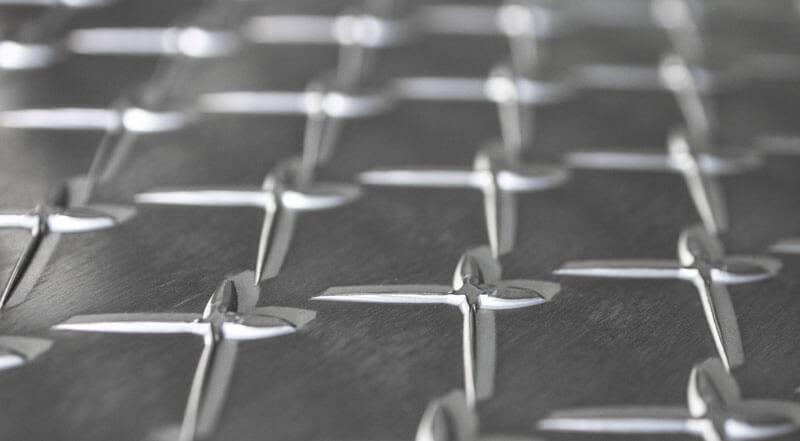

5754-H114 Aluminum floor plate, commonly known as “diamond plate”, “tread plate” or “Top Grip”, is an excellent candidate for most processing techniques and both interior and exterior applications. Top Grip is the only bar pattern that has proven to be adequate to meet R13 antiskid standards. With a special design of the bars and a bar height of 2.4 mm, Top Grip meets most safety requirements. It’s lightweight with a dull mill textured finish and its raised diamond pattern on the surface provides excellent traction. Common applications include vehicle bodies, ship building, catwalks, and trench covers.
Alloy 5754 corresponds in standard designations and specifications, but may not be a direct equivalent to: A95754, Al Mg3, Al 3.1Mg Mn Cr, AW-5754.
Extra traction. Formable & weldable. Average machinability.
|Mn||0.0 - 0.5|
|Fe||0.0 - 0.4|
|Mg||2.60 - 3.60|
|Si||0.0 - 0.4|
|Cr||0.0 - 0.3|
|Cu||0.0 - 0.10|
|Mn + Cr||0.1 - 0.6|
|Zn||0.0 - 0.2|
|Ti||0.0 - 0.15|
|Density||0.0965 lb/in3||2.66 g/cc|
|Ultimate Tensile Strength||39,200psi||270 MPa|
|Yield Tensile Strength||31,200psi||215 MPa|
|Shear Strength||23,200psi||160 MPa|
|The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
