6063-T52 Aluminum Square Tube

Item Selection
1) Select Size (OD):
2) Select Wall Thickness:
3) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
4) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
Disclaimer:

Please note: Due to material handling and the nature of the metal industry, items may have light surface scratching.

This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

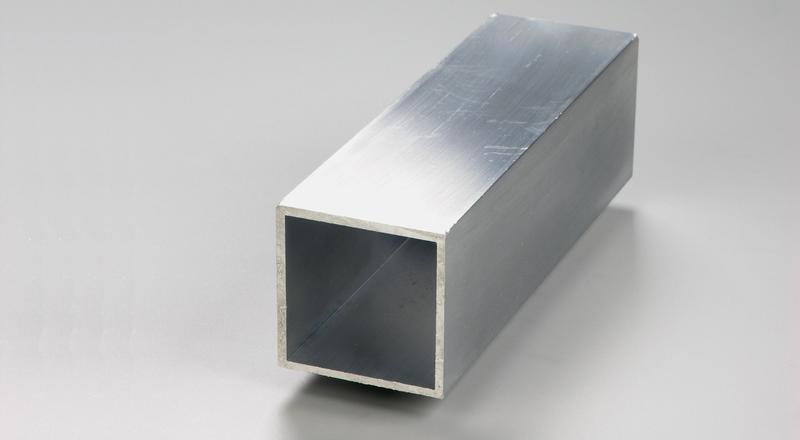

6063-T52 Aluminum square tubing is an excellent candidate for most processing techniques with good corrosion resistance. It’s a lightweight material with a smooth surface and defined 90° edges inside and outside. This is an extruded tube meaning there is no seam. It’s great for structural projects that require light weight material including frames, trailers, shelving, and ornamental purposes.

Features

ASTM

ASTM B221-08

Alloy

6063-T52

Characteristics

6063
Medium strength. Weldable, machinable & formable with large radius.

Specifications

CHEMICAL COMPOSITION

Element Percentage
Al 98.9
Cr 0.1 max
Cu 0.1 max
Mg 0.45 - 0.9
Fe  0.35 max
Mn 0.1 max
Si 0.2 - 0.6
Zn 0.1 max
Ti 0.1 max



MECHANICAL INFORMATION

  Imperial Metric
Density 0.1 lb/in3 2.7 g/cc
Ultimate Tensile Strength 27,000psi 186 MPa
Yield Tensile Strength 21,000psi 145 MPa
Fatigue Strength 10,000psi 68.9 MPa
Shear Strength 17,000psi 117 MPa
Melting Point 1,140 - 1,210°F 616 - 654°C



Temper T52
Hardness Knoop 83
Hardness Brinell 60
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES

Size OD Wall Thickness Length Weight
(Lb/Ft)
3/4" x 3/4" x 0.062" 3/4 x 3/4" 0.062" 253.00" 0.199
3/4" x 3/4" x 1/8" 3/4 x 3/4" 1/8" 253.00" 0.364
1" x 1" x 0.062" 1 x 1" 0.062" 253.00" 0.271
1" x 1" x 1/8" 1 x 1" 1/8" 253.00" 0.524
1-1/4" x 1-1/4" x 1/8" 1-1/4 x 1-1/4" 1/8" 253.00" 0.655
1-1/2" x 1-1/2" x 1/8" 1-1/2 x 1-1/2" 1/8" 253.00" 0.800
1-3/4" x 1-3/4" x 1/8" 1-3/4 x 1-3/4" 1/8" 253.00" 0.946
2" x 2" x 1/8" 2 x 2" 1/8" 252.00" 1.091
2" x 2" x 3/16" 2 x 2" 3/16" 253.00" 1.630
2" x 2" x 1/4" 2 x 2" 1/4" 253.00" 2.100
2-1/2" x 2-1/2" x 1/8" 2-1/2 x 2-1/2" 1/8" 253.00" 1.426
3" x 3" x 1/8" 3 x 3" 1/8" 253.00" 1.673
3" x 3" x 3/16" 3 x 3" 3/16" 253.00" 2.449
3" x 3" x 1/4" 3 x 3" 1/4" 253.00" 3.300
4" x 4" x 1/8" 4 x 4" 1/8" 253.00" 2.255
4" x 4" x 1/4" 4 x 4" 1/4" 253.00" 4.500
