Flame Cutting

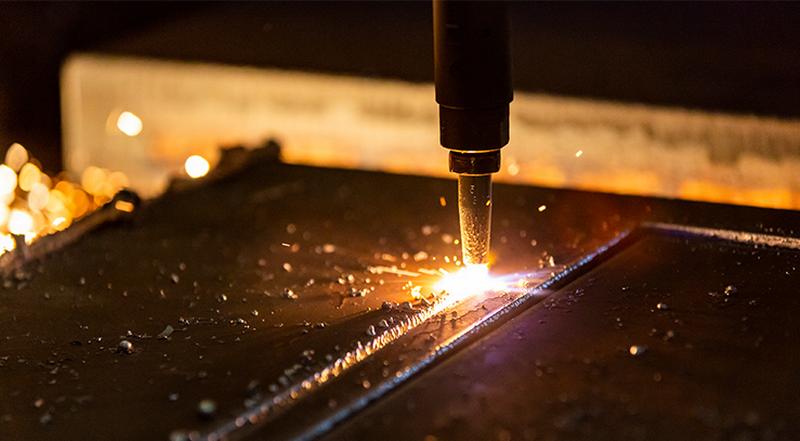

Flame cutting, also known as oxyfuel cutting, is a thermal process using a combination of oxygen and propylene that generates enough energy to melt and pierce through material up to 6” thick. The process of flame cutting is faster and more cost effective than other mechanical cutting methods.

Description

Flame cutting is a great option for material too thick to be sheared. Our flame table spans an impressive 10' x 30' surface area and can cut curves, arcs, circles, and other patterns in material up to 6" thick. With a cut rate of up to 500 inches per minute, your project will be processed efficiently and with a high quality cut edge. Accepting DXF and DWG files, our nesting software allows for more accurate quoting and major cost savings.

Capabilities

ALLOYS

STEEL:
AR200, AR400, T1, A36 (Hot Rolled and Pickled & Oiled), GR50, 1018 Cold Rolled, A588/A606

THICKNESS

1-1/4" to 6.000"

TOLERANCE

STANDARD TOLERANCE:
+/- 0.250"



flame_cutting

Quote Request

A mark against which to be measured, our products and services are centered on reliability, expert advising, convenience, and empowering creation…we’re all about making it work for you. Click here to connect with our experienced engineers and make your custom project a reality.

Request a Quote

Drawing & Files

Required File Formats:

DXF, DWG, IGS, IPT, or STEP



In-house drawing capabilities available for an additional drafting fee.
