3003-H22 Aluminum Floor Plate

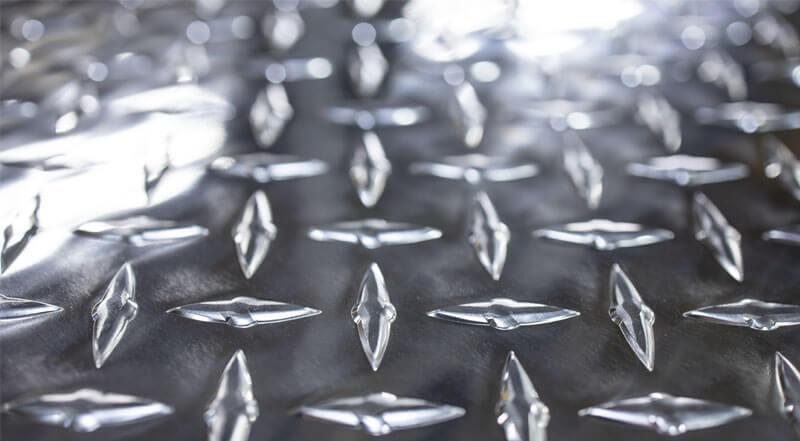

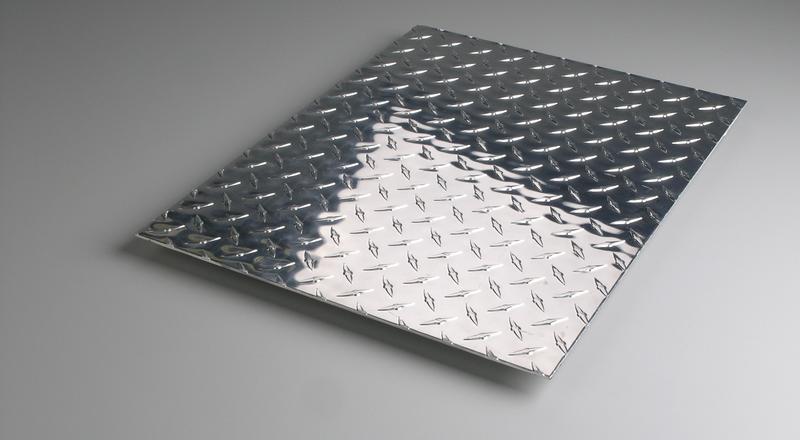

Aluminum diamond floor plate stock cut to size
Click to Enlarge
This is description text
Item Selection
1) Select Thickness:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

3003 Aluminum floor plate, commonly known as “diamond plate” or “tread plate”, is an excellent candidate for most processing techniques and both interior and exterior applications. It’s lightweight with a highly polished textured finish. Raised tread brite diamond pattern on the surface provides excellent traction. Common applications include truck beds, support structures, catwalks, and trench covers. This is an excellent choice if looking for a corrosion resistant material.

Features

ASTM

ASTM B209

Alloy

3003-H22

Characteristics

3003
Most common decorative aluminum floor plate. Light weight, formable & weldable. Shiny modern look.

Specifications

CHEMICAL COMPOSITION
Element Percentage
Al 98.7
Cu 0.05 - 0.2
Fe  0.7 max
Mn 1 - 1.5
Si 0.6 max
Zn 0.1 max



MECHANICAL INFORMATION
  Imperial Metric
Density 0.1 lb/in3 2.78 g/cc
Ultimate Tensile Strength 22,000psi 152 MPa
Yield Tensile Strength 21,000psi 145 MPa
Fatigue Strength 9,000psi 62.1 MPa
Shear Strength 14,000psi 96.5 MPa
Melting Point 1,190 - 1,210°F 643 - 654°C



Temper H22
Hardness Brinell 40

Available Sizes

AVAILABLE SIZES
Thickness Width Length Weight
(lbs/ft)
0.063 48.00" 120.00" 0.999
0.063 48.00" 192.00" 0.999
0.063 48.00" 96.00" 1.000
0.1 48.00" 120.00" 1.600
0.1 48.00" 192.00" 1.600
0.1 48.00" 96.00" 1.600
0.1 60.00" 120.00" 1.600
0.1 60.00" 192.00" 1.600
0.125 48.00" 120.00" 1.899
0.125 48.00" 192.00" 1.899
0.125 48.00" 96.00" 1.900
0.125 60.00" 120.00" 1.899
0.1875 48.00" 120.00" 2.799
0.1875 48.00" 192.00" 2.799
0.1875 48.00" 96.00" 2.799
0.1875 60.00" 120.00" 2.799
0.25 48.00" 120.00" 3.699
0.25 48.00" 144.00" 3.699
0.25 48.00" 192.00" 3.699
0.25 48.00" 96.00" 3.699
0.25 60.00" 120.00" 3.699
