6061 T6 Aluminum Flat Bar | Coremark Metals | Cut to Size

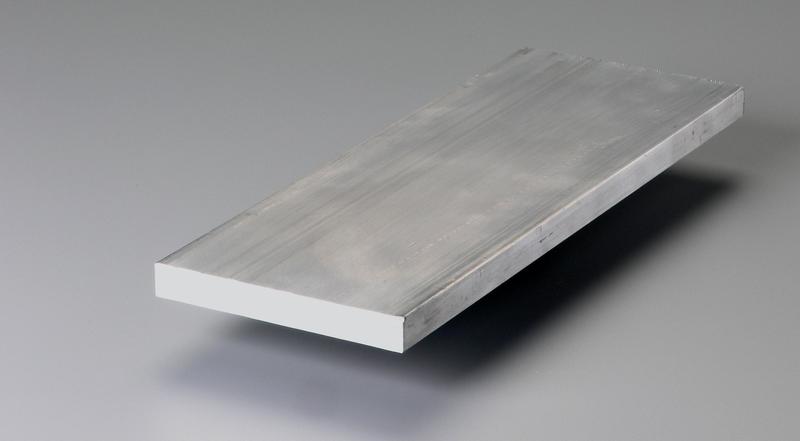

6061-T6 Aluminum Flat Bar

Aluminum flat bar stock cut to length
Click to Enlarge
This is description text
Item Selection
1) Select Thickness:
2) Select Size:
3) {{sizeText}}
Cut in Half?
Please Select your Custom Width Below.
Please Select your Custom Length Below.
4) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

6061-T6511 extruded Aluminum flat bar, also known as “flat stock” or "rectangle bar", is an excellent candidate for most processing techniques and both interior and exterior applications. Aluminum flat bars have defined edges, a smooth finish, and are light weight. Common applications include shelves, brackets, sculptures, and structural trim. With above average corrosion resistance, this is an excellent choice wherever strength is required.

Features

Alloy

6061-T6

ASTM

ASTM B221-08

Characteristics

6061
Most commonly used. High strength & good welding. Not good formability - If formed, needs a very gradual radius. Good machinability

Specifications

CHEMICAL COMPOSITION

Element Percentage
Al 98
Cr 0.04 - 0.35
Cu 0.15 - 0.40
Fe  0.7 max
Mg 0.8 - 1.2
Mn 0.15 max
Si 0.4 - 0.8
Ti 0.15 max
Zn 0.25 max



MECHANICAL INFORMATION

  Imperial Metric
Density 0.1 lb/in3 2.7 g/cc
Ultimate Tensile Strength 45,000psi 310 MPa
Yield Tensile Strength 40,000psi 276 MPa
Fatigue Strength 14,000psi 96.5 MPa
Shear Strength 30,000psi 207 MPa
Melting Point 1,080 - 1,205°F 582 - 652°C



Hardness Rockwell B60
Hardness Brinell 95

The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES

Size Length Weight
(lbs/ft)
1/8" x 3/4" 144.00" 0.110
1/8" x 1" 144.00" 0.147
1/8" x 1-1/4" 144.00" 0.180
1/8" x 1-1/2" 144.00" 0.220
1/8" x 2" 144.00" 0.294
1/8" x 2-1/2" 144.00" 0.367
1/8" x 3" 144.00" 0.441
3/16" x 1/2" 144.00" 0.111
3/16" x 3/4" 144.00" 0.165
3/16" x 1" 144.00" 0.221
3/16" x 1-1/4" 144.00" 0.276
3/16" x 1-1/2" 144.00" 0.331
3/16" x 2" 144.00" 0.441
3/16" x 2-1/2" 144.00" 0.551
3/16" x 3" 144.00" 0.662
3/16" x 4" 144.00" 0.882
1/4" x 3/8" 144.00" 0.110
1/4" x 1/2" 144.00" 0.151
1/4" x 3/4" 144.00" 0.220
1/4" x 1" 144.00" 0.294

SEE ALL AVAILABLE SIZES
