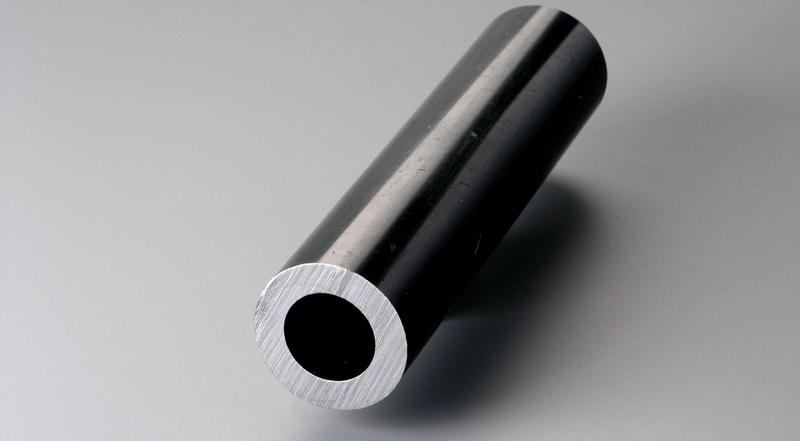

1020 Drawn Over Mandrel (DOM) Steel Round Tube
Click to Enlarge
This is description text
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.
Pricing is subject to change. In-store pricing may vary from online pricing.
Description
A513 1020 drawn over mandrel (DOM) tubing an excellent candidate for most processing techniques. DOM tubing has a smooth black or dark brown uncoated finish with accurate dimensions throughout. DOM tubing is a welded tube with all flash removed making it a seamless tube. Designed for high strength close tolerances. Commonly used for axles, bushings, hydraulic cylinders and hinges. ASTM A513 is the standard specification for electric-resistance-welded carbon and alloy steel mechanical tubing.
Please visit our DOM Tolerance Chart for helpful information.
Features
Alloy
1020
ASTM
ASTM A513
Characteristics
A513
Type 5. High strength. Easy to weld, cut, form and machine.
Type 5. High strength. Easy to weld, cut, form and machine.
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| C | 0.17 - 0.23 |
| Fe | 99.08 - 99.53 |
| Mn | 0.3 - 0.6 |
| P | 0.04 max |
| S | 0.05 max |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Ultimate Tensile Strength | 132,000psi | 602 MPa |
| Yield Tensile Strength | 74,185psi | 512 MPa |
| Hardness Brinell | 90 |
| Hardness Rockwell | B75 |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|
Available Sizes
AVAILABLE SIZES |
|||||
| Size | OD | Wall Thickness | ID | Length | Weight (Lb/Ft) |
| 3/8" x 18ga | 3/8" | .049 (18ga)" | 0.277" | 204.00" | 0.171 |
| 3/8" x 16ga | 3/8" | .065 (16ga)" | 0.245" | 204.00" | 0.220 |
| 1/2" x 18ga | 1/2" | .049 (18ga)" | 0.402" | 204.00" | 0.236 |
| 1/2" x 16ga | 1/2" | .065 (16ga)" | 0.37" | 204.00" | 0.302 |
| 1/2" x 14ga | 1/2" | .083 (14ga)" | 0.334" | 204.00" | 0.370 |
| 1/2" x 13ga | 1/2" | .095 (13ga)" | 0.31" | 204.00" | 0.411 |
| 1/2" x 11ga | 1/2" | .120 (11ga)" | 0.26" | 204.00" | 0.487 |
| 9/16" x 14ga | 9/16" | .083 (14ga)" | 0.3965" | 204.00" | 0.425 |
| 9/16" x 13ga | 9/16" | .095 (13ga)" | 0.3725" | 204.00" | 0.475 |
| 9/16" x 12ga | 9/16" | .109 (12ga)" | 0.3445" | 204.00" | 0.529 |
| 5/8" x 14ga | 5/8" | .083 (14ga)" | 0.459" | 204.00" | 0.480 |
| 5/8" x 11ga | 5/8" | .120 (11ga)" | 0.385" | 204.00" | 0.647 |
| 3/4" x 16ga | 3/4" | .065 (16ga)" | 0.62" | 204.00" | 0.475 |
| 3/4" x 14ga | 3/4" | .083 (14ga)" | 0.584" | 204.00" | 0.591 |
| 3/4" x 13ga | 3/4" | .095 (13ga)" | 0.56" | 204.00" | 0.670 |
| 3/4" x 12ga | 3/4" | .109 (12ga)" | 0.532" | 204.00" | 0.750 |
| 3/4" x 11ga | 3/4" | .120 (11ga)" | 0.51" | 204.00" | 0.807 |
| 3/4" x .156" | 3/4" | .156" | 0.438" | 204.00" | 0.990 |
| 3/4" x 3/16" | 3/4" | 3/16" | 0.375" | 204.00" | 1.130 |
| 3/4" x .219" | 3/4" | .219" | 0.312" | 204.00" | 1.242 |
| 3/4" x 1/4" | 3/4" | 1/4" | 0.25" | 204.00" | 1.335 |
SEE ALL AVAILABLE SIZES |
|||||
