Hot Rolled Square Base Plates

Item Selection
1) Select Thickness:
2) Select Size:
{{uniqueSku}}
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Quantity: Quantity Discounts
Pricing is subject to change. In-store pricing may vary from online pricing.

Description

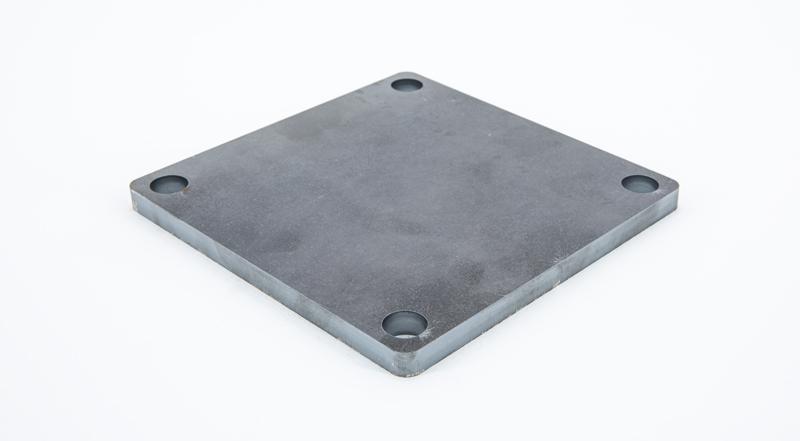

Our A1011 hot rolled pickled and oiled (P&O) steel square base plates are fabricated in-house using our precision lasers to ensure consistency and accuracy and are available in an array of thicknesses, sizes and precut hole diameters. Characterized by a smooth, blue-grey finish, this material has gone through a “pickling” process, meaning the plates have been dipped into acid in order to remove mill scale from its surface. Once the pickling process is complete, a light rust preventative is applied to slow down the corrosion of the material making them paint or powder coat ready. A1011 is considered a commercial quality alloy material; common applications include mounting of equipment or structural lateral load support.

Specifications

DETAILS

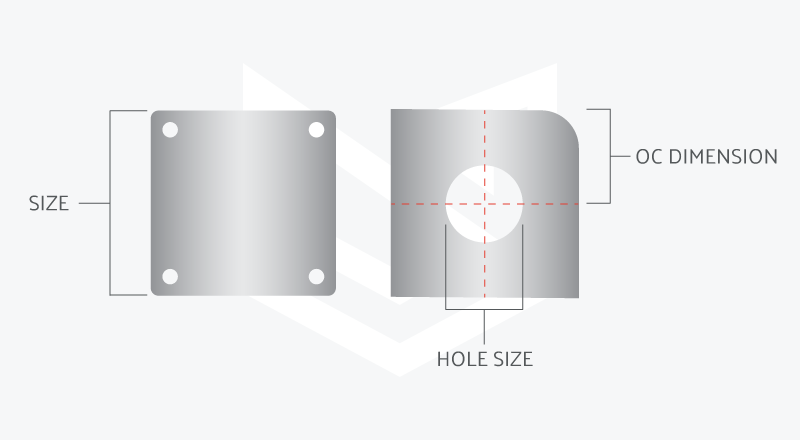

Thickness Size Hole Size OC Dimension
1/8" 2" x 2" 1/4" 1/4"
1/8" 3" x 3" 5/16" 1/4"
1/8" 4" x 4" 3/8" 1/2"
3/16" 2" x 2" 1/4" 1/4"
3/16" 3" x 3" 5/16" 1/4"
3/16" 4" x 4" 3/8" 1/2"
1/4" 4" x 4" 5/16" 1/2"
1/4" 6" x 6" 7/16" 1/2"
1/4" 8" x 8" 9/16" 1"
5/16" 4" x 4" 3/8" 1/2"
5/16" 6" x 6" 7/16" 1/2"
5/16" 8" x 8" 9/16" 1"
3/8" 4" x 4" 7/16" 1/2"
3/8" 6" x 6" 9/16" 1/2"
3/8" 8" x 8" 13/16" 1"
1/2" 4" x 4" 9/16" 1/2"
1/2" 6" x 6" 11/16" 1/2"
1/2" 8" x 8" 11/16" 1/2"
1/2" 10" x 10" 13/16" 1"
1/2" 12" x 12" 1-1/16" 1"
