Hot Rolled Circular Base Plates | Coremark Metals

Hot Rolled Circular Base Plates

Item Selection
1) Select Thickness:
2) Select Size:
{{uniqueSku}}
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Quantity: Quantity Discounts
Pricing is subject to change. In-store pricing may vary from online pricing.

Description

Our A1011 hot rolled pickled and oiled (P&O) steel circular base plates are fabricated in-house using our precision lasers to ensure consistency and accuracy and are available in an array of thicknesses, sizes and precut hole diameters. Characterized by a smooth, blue-grey finish, this material has gone through a “pickling” process, meaning the plates have been dipped into acid in order to remove mill scale from its surface. Once the pickling process is complete, a light rust preventative is applied to slow down the corrosion of the material making them paint or powder coat ready. A1011 is considered a commercial quality alloy material; common applications include mounting of equipment or structural lateral load support.

Specifications

DETAILS

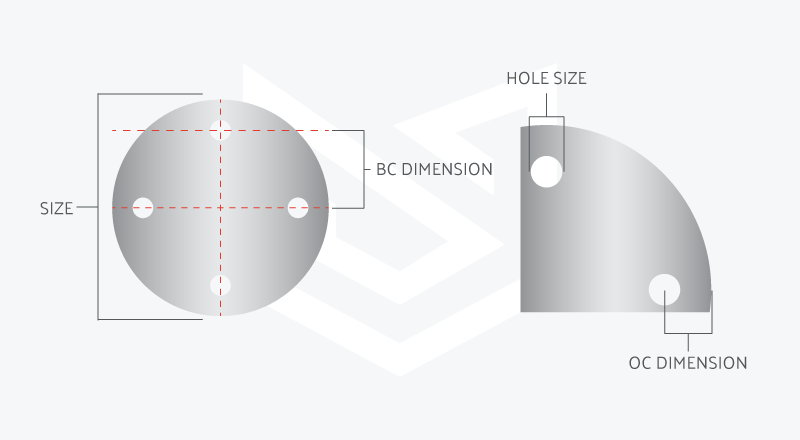

Thickness Size Hole Size OC Dimension BC Dimension
1/8" 3" 1/4" 3/8" 1-1/8"
1/8" 4" 1/4" 3/8" 1-5/8"
1/8" 6" 1/4" 3/8" 2-5/8"
3/16" 3" 1/4" 3/8" 1-1/8"
3/16" 4" 1/4" 3/8" 1-5/8"
3/16" 6" 1/4" 3/8" 2-5/8"
1/4" 3" 1/4" 3/8" 1-1/8"
1/4" 4" 1/4" 3/8" 1-5/8"
1/4" 6" 1/4" 3/8" 2-5/8"
