Hot Rolled Hollow Gusset Plates

Item Selection
1) Select Thickness:
2) Select Size:
{{uniqueSku}}
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity: Quantity Discounts
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
Pricing is subject to change. In-store pricing may vary from online pricing.

Description

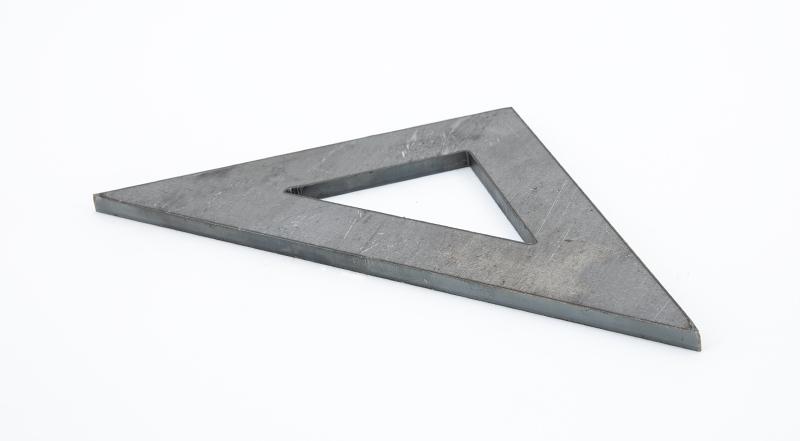

Our A1011 hot rolled pickled and oiled (P&O) steel hollow gusset plates are fabricated in-house using our precision lasers to ensure consistency and accuracy and are available in a variety of thicknesses and sizes. Characterized by a smooth, blue-grey finish, these hollow gussets have undergone a “pickling” process, meaning the plates have been dipped into acid to remove the mill scale from its surface. Once the pickling process is complete, a light rust preventative is applied to slow down the corrosion of the material, making it paint or powder coat ready. A1011 is considered a commercial quality alloy material; common applications include structural joint support.

Specifications

DETAILS

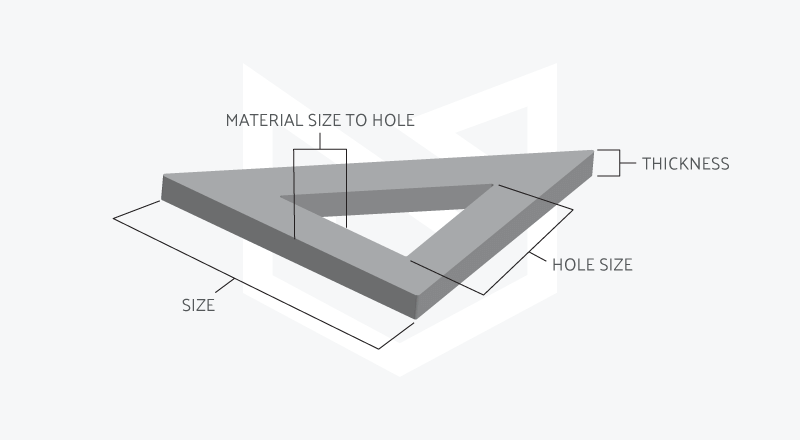

Thickness Size Material Size to Hole Hole Size
1/4" 12" x 12" 1" 8-9/16"
1/4" 10" x 10" 1" 6-9/16"
1/4" 8" x 8" 1" 4-9/16"
1/4" 6" x 6" 1" 2-9/16"
1/4" 4" x 4" 1/2" 2-1/4"
3/8" 12" x 12" 1" 8-1/4"
3/8" 10" x 10" 1" 6-1/4"
3/8" 8" x 8" 1" 4-7/16"
3/8" 6" x 6" 1" 2-7/16"
3/8" 4" x 4" 1/2" 2-1/8"
1/2" 12" x 12" 1" 8-1/8"
1/2" 10" x 10" 1" 6-3/16"
1/2" 8" x 8" 1" 4-3/16"
1/2" 6" x 6" 1" 2-7/16"
1/2" 4" x 4" 1/2" 2-1/8"
