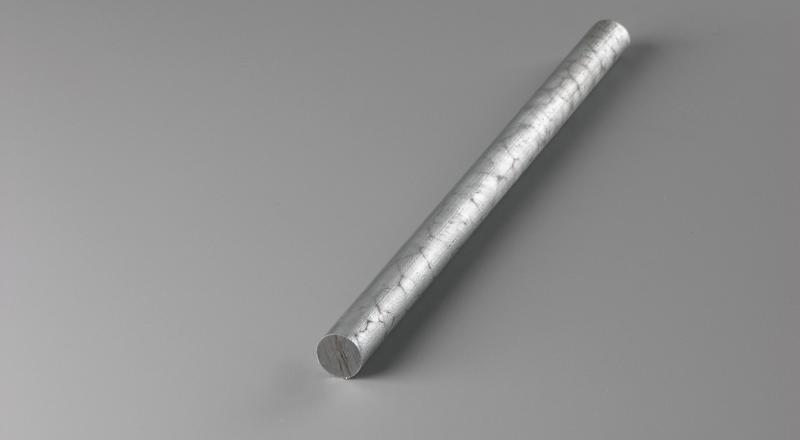

Galvanized Steel Round Bar

Galvanized steel metal round bar stock
Click to Enlarge
This is description text
Item Selection
1) Select Size:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

Hot-dipped galvanized round bar is an excellent candidate for most processing techniques. Welding, torching, or abrasive sawing galvanized steel is not recommended without proper protection and adequate ventilation. Galvanized round bars are A36 hot rolled steel, or mild steel, round bars that have been dipped into a molten zinc coating process (ASTM A123). Hot-dipped galvanize (HDG) can be identified by its crystallization pattern, also known as “spangle” on the surface of the material. Galvanized round bars are semi-rough with dull edges, and are inexact dimensions throughout length. Great corrosion resistance, excellent candidate for outdoor use or exposed environments. Common applications include hinges, railing systems, and ground stakes.

Features

Characteristics

A36
Most commonly used mild and hot rolled steel. Good welding, forming, & machining. Low cost structural steel.

Alloy

A36

ASTM

ASTM A123
Standard specification for zinc (hot-dip galvanized) coatings on iron and steel products.

Specifications

CHEMICAL COMPOSITION

Element Percentage
C 0.26
Cu 0.2
Fe 99
Mn 0.75
P 0.04 max
S 0.05 max



MECHANICAL INFORMATION

  Imperial Metric
Density 0.282 lb/in3 7.8 g/cc
Ultimate Tensile Strength 58,000psi 400 MPa
Yield Tensile Strength 47,700psi 315 MPa
Shear Strength 43,500psi 300 MPa
Melting Point 2,590 - 2,670°F 1,420 - 1,460°C



Hardness Brinell 140
Production Method Hot Rolled
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES

Size Length Weight
(lbs/ft)
5/8" 240.00" 1.116
3/4" 240.00" 1.608
1" 240.00" 2.857
