304-#4 (Brushed) Stainless Steel Sheet

Item Selection
1) Select Thickness:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
4) Select Grain Direction:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

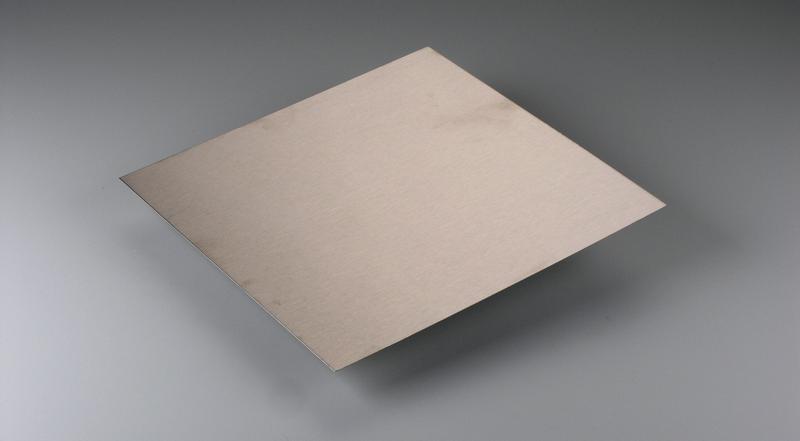

304 #4 stainless steel sheet is an excellent candidate for most processing techniques as well as both indoor and outdoor applications. This non-magnetic product features a #4 brushed finish with directional grain and comes with a removable PVC protective film on one side making it ideal for cosmetic applications such as backsplashes. 304 #4 stainless steel is a high strength material with excellent corrosion resistance, so it is also commonly used in aerospace structures, pressure vessels, architectural designs, and food and beverage industrial equipment. ASTM A240 is the standard specification for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications.

Please visit our Gauge Conversion Chart for helpful information.



Features

Alloy

304

ASTM

ASTM A240

Characteristics

304
Good welding & fair machining. Good corrosion resistance.

Specifications

CHEMICAL COMPOSITION

Element Percentage
C 0.08 max
Fe 66.34 - 74
Mn 2 max
Ni 8 - 10.5
P 0.045 max
S 0.03 max
Si 1 max
Cr 20



MECHANICAL INFORMATION

  Imperial Metric
Density 0.289 lb/in3 8.0 g/cc
Ultimate Tensile Strength 73,200psi 310 MPa
Yield Tensile Strength 31,200psi 276 MPa
Melting Point 2,550 - 2,651°F 1,400 - 1,455°C



Temper Annealed
Hardness Rockwell B70
Hardness Brinell 123
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES

Thickness Width Length Weight
(lbs/ft)
24ga 48.00" 120.00" 1.010
22ga 48.00" 120.00" 1.260
20ga 48.00" 120.00" 1.512
20ga 60.00" 120.00" 1.512
18ga 48.00" 120.00" 2.016
16ga 48.00" 120.00" 2.520
14ga 48.00" 120.00" 3.530
12ga 48.00" 120.00" 4.411
11ga 48.00" 120.00" 5.040
10ga 48.00" 120.00" 5.670
