Steel Beveled Cutting Edge
Click to Enlarge
This is description text
Item Selection
Description

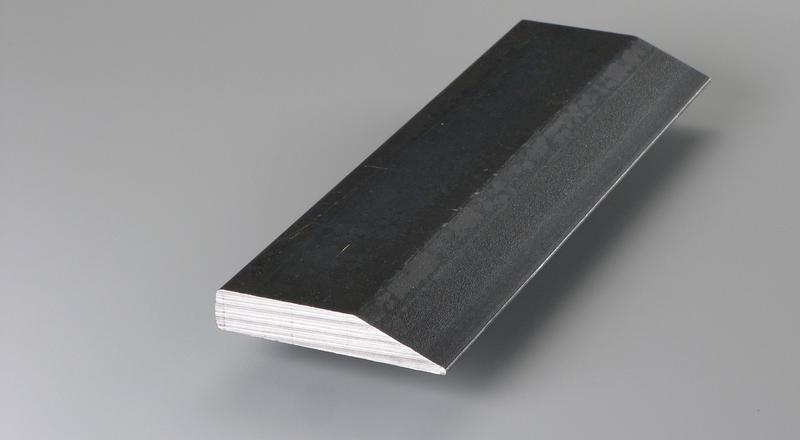

Hot rolled steel beveled cutting edges are manufactured from 1055 hardened steel to meet the demands in the toughest environments. A1055 hot rolled steel beveled cutting edges have a rough, blue-grey finish with tapered edges. Designed to be welded or bolted onto tractors or skid steer buckets, and plows to increase work productivity.
Features
ASTM
ASTM 1055
Characteristics
1055
High carbon steel. High strength. Good welding & poor forming. Abrasion resistant.
High carbon steel. High strength. Good welding & poor forming. Abrasion resistant.
Alloy
1055
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| C | 0.50 - 0.60 |
| Mn | 0.60 - 0.90 |
| P | 0.04 max |
| S | 0.05 max |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.284 lb/in3 | 7.87 g/cc |
| Ultimate Tensile Strength | 94,300psi | 650 MPa |
| Yield Tensile Strength | 51,500psi | 355 MPa |
| Hardness Brinell | 192 |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|

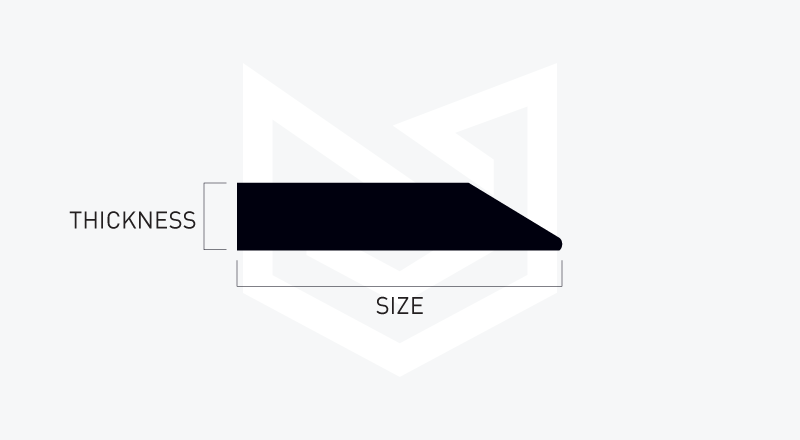

Available Sizes
AVAILABLE SIZES |
||
| Size | Length | Weight (lbs/ft) |
| 3/8"x3" | 246.00" | 3.330 |
| 1/2"x3" | 246.00" | 4.400 |
| 1/2"x4" | 294.00" | 6.040 |
| 1/2"x6" | 294.00" | 9.450 |
| 5/8"x6" | 294.00" | 11.360 |
| 3/4"x4" | 294.00" | 8.480 |
| 3/4"x6" | 294.00" | 13.600 |
| 3/4"x8" | 294.00" | 18.410 |
| 1"x8" | 294.00" | 25.170 |
