Marlboro Weld-On Hinge - Stainless Steel - w/Stainless Steel Pin and Bushing

Item Selection
1) Select Item:
Each Price: ${{displayPrice.toFixed(2)}}
Quantity:
Pricing is subject to change. In-store pricing may vary from online pricing.

Product Overview

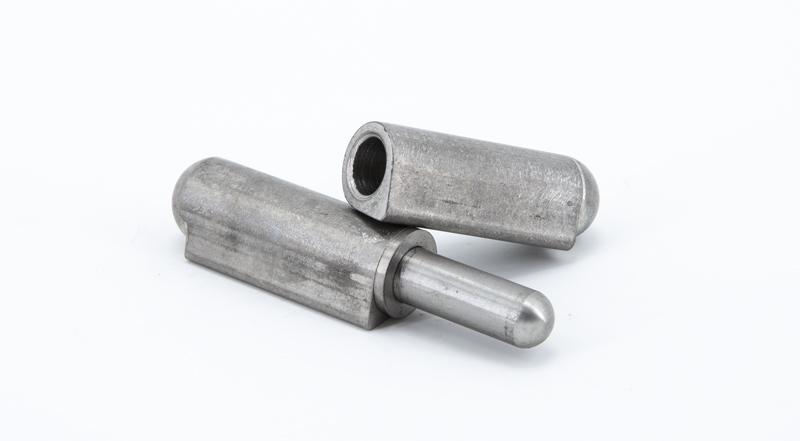

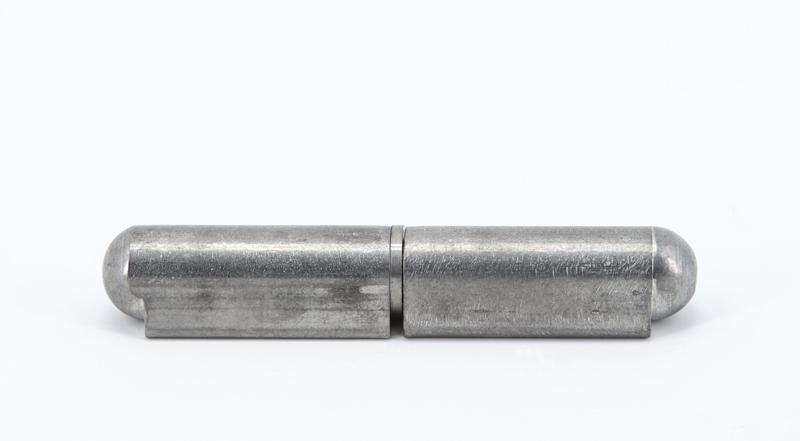

Marlboro Weld-On Hinge

304 Stainless Steel Body

- 304 stainless steel pin and bushing
- Requires welding for installation
- Higher load rating when compaired to slip joint hinges
- 360º range of motion

Specifications

DETAILS

Length Overall Thickness Diameter L1 L2 Pin Diameter
1.97" 0.38" 0.315" 0.78" 0.58" 0.197"
3.15" 0.61" 0.51" 1.29" 0.85" 0.236"
3.94" 0.77" 0.63" 1.63" 1.2" 0.394"
5.91" 1" 0.787" 2.54" 1.63" 0.5"
