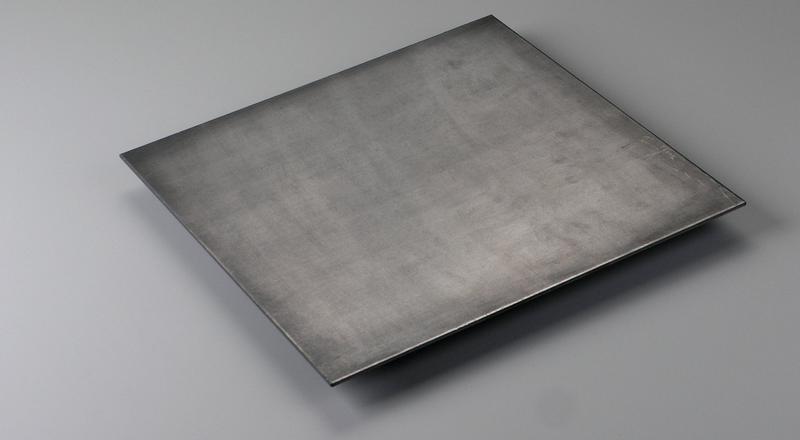

Hot Rolled Steel Sheet

Item Selection
1) Select Thickness:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

A1011 hot rolled steel sheets are an excellent candidate for most processing techniques. A1011 hot rolled steel sheets have smooth, blue-grey finish. A1011 is considered a commercial quality alloy material. Common applications include base plates, brackets, gusset, sheathing and ornamental projects. ASTM A1011 is the standard specification for steel, sheet, strip, hot rolled, carbon, structural, high strength low alloy, high strength low alloy with improved formability and ultra-high strength.

For material thicknesses ¼” and greater please visit A36 hot rolled plate steel.

Please visit our Gauge Conversion Chart for helpful information.



Features

ASTM

ASTM A1011

Alloy

A1011

Characteristics

A1011
Good welding, forming, and strength.

Specifications

CHEMICAL COMPOSITION

Element Percentage
C 0.15 max
Mn 0.6 max
P 0.03 max
S 0.035 max



MECHANICAL INFORMATION

  Imperial Metric
Density 0.284 lb/in3 7.87 g/cc
Ultimate Tensile Strength 58,000psi 400 MPa
Yield Tensile Strength 36,300psi 250 MPa



Hardness Brinell 75
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us



Available Sizes

AVAILABLE SIZES

Thickness Width Length Weight
(lbs/ft)
16ga 48.00" 120.00" 2.500
16ga 48.00" 144.00" 2.500
16ga 48.00" 96.00" 2.500
14ga 48.00" 120.00" 3.125
14ga 48.00" 144.00" 3.125
14ga 48.00" 96.00" 3.125
14ga 60.00" 120.00" 3.125
12ga 48.00" 120.00" 4.375
12ga 48.00" 144.00" 4.375
12ga 48.00" 96.00" 4.375
12ga 60.00" 120.00" 4.375
11ga 48.00" 120.00" 5.000
11ga 48.00" 144.00" 5.000
11ga 48.00" 96.00" 5.000
11ga 60.00" 120.00" 5.000
11ga 60.00" 144.00" 5.000
11ga 72.00" 120.00" 5.000
10ga 48.00" 120.00" 5.625
10ga 48.00" 96.00" 5.625
10ga 60.00" 120.00" 5.625

SEE ALL AVAILABLE SIZES
