Hot Rolled Steel Railcap/Handrail

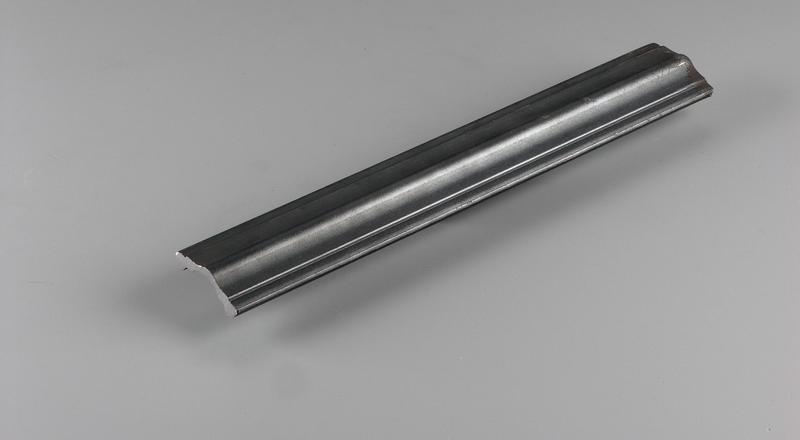

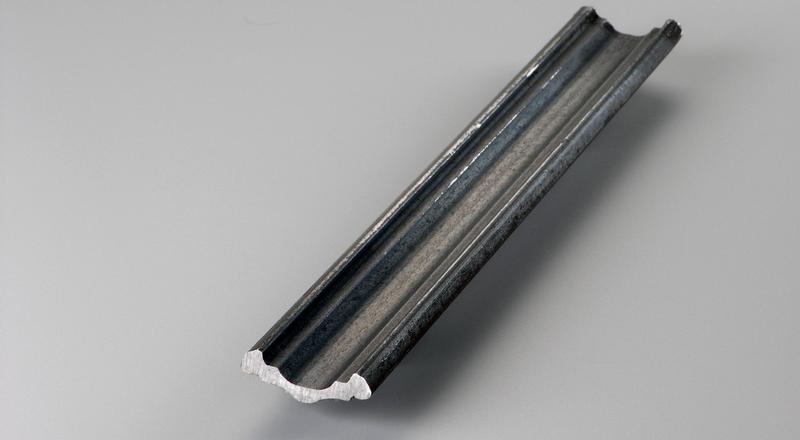

A36 hot rolled steel metal railcap handrail stock material cut to size
Click to Enlarge
This is description text
Item Selection
1) Select Size:
2) {{sizeText}}
Cut in Half?
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Quantity:
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.

Description

A36 hot rolled steel rail cap or handrail, is an excellent candidate for most processing techniques. A36 hot rolled steel rail caps have a rough, blue-grey finish, dull rounded edges and have inexact dimensions throughout length. A36 material is a low carbon steel, often referred to as mild steel which is long lasting and durable. Designed for use as a handrail or use for ornamental projects. ASTM A36 / A36M-08 is the standard specification for carbon structural steel.

Features

ASTM

ASTM A36

Characteristics

A36
Most commonly used mild and hot rolled steel. Good welding, forming, & machining. Low cost structural steel.

Alloy

A36

Specifications

CHEMICAL COMPOSITION
Element Percentage
C 0.26
Cu 0.2
Fe 99
Mn 0.75
P 0.04 max
S 0.05 max



MECHANICAL INFORMATION
  Imperial Metric
Density 0.282 lb/in3 7.8 g/cc
Ultimate Tensile Strength 58,000psi 400 MPa
Yield Tensile Strength 47,700psi 315 MPa
Shear Strength 43,500psi 300 MPa
Melting Point 2,590 - 2,670°F 1,420 - 1,460°C



Hardness Brinell 140
Production Method Hot Rolled
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
