Hot Rolled Steel Junior Beam

Hot rolled steel metal material custom cut to size
Click to Enlarge
This is description text
Item Selection
1) Select Size (Depth x Weight Per Foot):
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

Hot rolled steel junior beams are an excellent candidate for most processing techniques and are often characterized by a textured blue-grey finish and tapered flanges against the web for increased strength. Commonly used in the construction industry. Steel junior beams are a standard structural material primarily used to carry loads transverse to its longitudinal axis (web). Steel junior beams are lighter in weight than standard I beams. ASTM A992 / A572-50 are the standard specifications for structural steel.


For additional information on item sizes, and/or cert requests please contact an Account Manager.


Features

Characteristics

A992
Most commonly used structural steel in construction. Weldable, high corrosion resistance.

ASTM

A992 / A572-50

Specifications

CHEMICAL COMPOSITION

Element Percentage
C 0.23
Mn 0.5 - 1.6
Si 0.4
V 0.15
Co 0.05
P 0.035
S 0.045



MECHANICAL INFORMATION

  Imperial Metric
Ultimate Tensile Strength 65,000psi 448 MPa
Yield Tensile Strength 50,000psi 345 MPa



Hardness Brinell 143
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us



Available Sizes

AVAILABLE SIZES

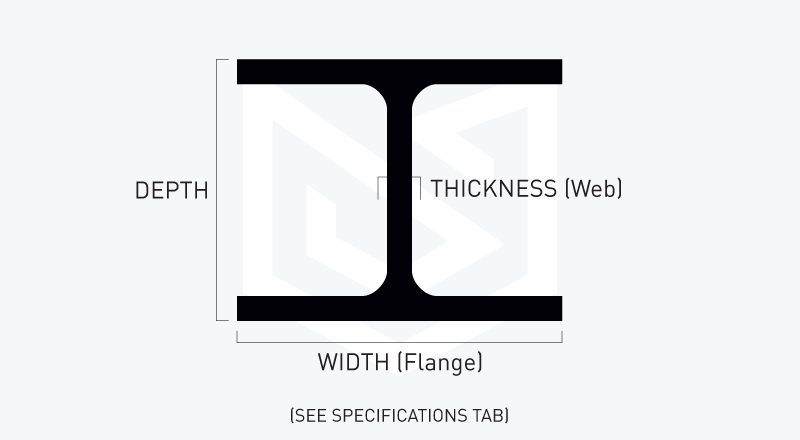

Size Depth Width  Thickness Flange
Thickness
Length Weight
(lbs/ft)
3" x 2.9# 3" 2.25" 0.09" 0.13" 412.00" 2.900
4" x 3.2# 4" 2.25" 0.092" 0.13" 412.00" 3.200
6" x 4.4# 6" 1.844" 0.114" 0.171" 240.00" 4.400
8" x 6.5# 8" 2.281" 0.135" 0.189" 240.00" 6.500
