Galvanized Steel Channel
Click to Enlarge
This is description text
Item Selection
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.
Pricing is subject to change. In-store pricing may vary from online pricing.
Description
Hot-dipped galvanized steel channels are excellent candidate for most processing techniques. Welding, torching, or abrasive sawing galvanized steel is not recommended without proper protection and adequate ventilation. Galvanized channels are A36 hot rolled steel, or mild steel, channels that have been dipped into a molten zinc coating process (ASTM A123). Hot-dipped galvanize (HDG) can be identified by its crystallization pattern, also known as “spangle” on the surface of the material. Great corrosion resistance, excellent candidate for outdoor use or exposed environments. Common applications include heating and cooling systems, walkways, ramps, structural support, trailers and electrical protection.
Features
Characteristics
A36
Most commonly used mild and hot rolled steel. Good welding, forming, & machining. Low cost structural steel.
Most commonly used mild and hot rolled steel. Good welding, forming, & machining. Low cost structural steel.
Alloy
A36
ASTM
ASTM A123
Standard specification for zinc (hot-dip galvanized) coatings on iron and steel products.
Standard specification for zinc (hot-dip galvanized) coatings on iron and steel products.
Specifications
CHEMICAL COMPOSITION |
|
| Element | Percentage |
| C | 0.26 |
| Cu | 0.2 |
| Fe | 99 |
| Mn | 0.75 |
| P | 0.04 max |
| S | 0.05 max |
MECHANICAL INFORMATION |
||
| Imperial | Metric | |
| Density | 0.282 lb/in3 | 7.8 g/cc |
| Ultimate Tensile Strength | 58,000psi | 400 MPa |
| Yield Tensile Strength | 47,700psi | 315 MPa |
| Shear Strength | 43,500psi | 300 MPa |
| Melting Point | 2,590 - 2,670°F | 1,420 - 1,460°C |
| Hardness Brinell | 140 |
| Production Method | Hot Rolled |
| The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports. Contact Us |
|
Available Sizes
AVAILABLE SIZES |
|||||

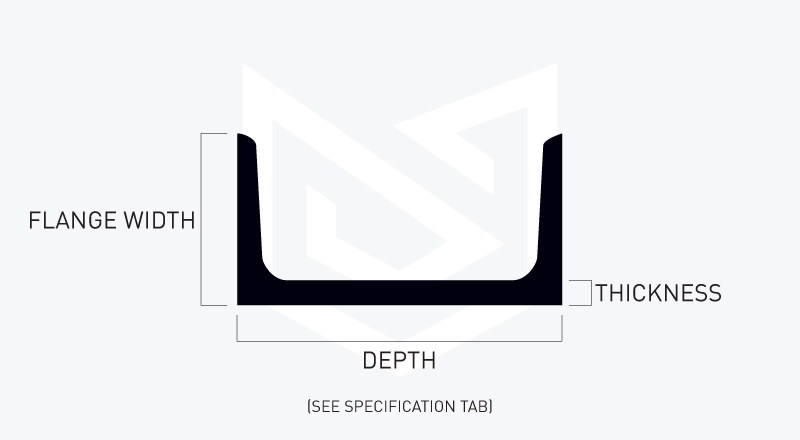

| Size | Depth | Width | Thickenss | Length | Weight (lbs/ft) |
| 3" x 4.1# | 3" | 1.41" | .170" | 240.00" | 4.387 |
| 4" x 5.4# | 4" | 1.584" | .184" | 240.00" | 5.778 |
| 5" x 6.7# | 5" | 1.75" | .190" | 240.00" | 7.169 |
| 6" x 8.2# | 6" | 1.92" | .200" | 240.00" | 8.774 |
| 8" x 11.5# | 8" | 2.26" | .220" | 240.00" | 12.305 |
