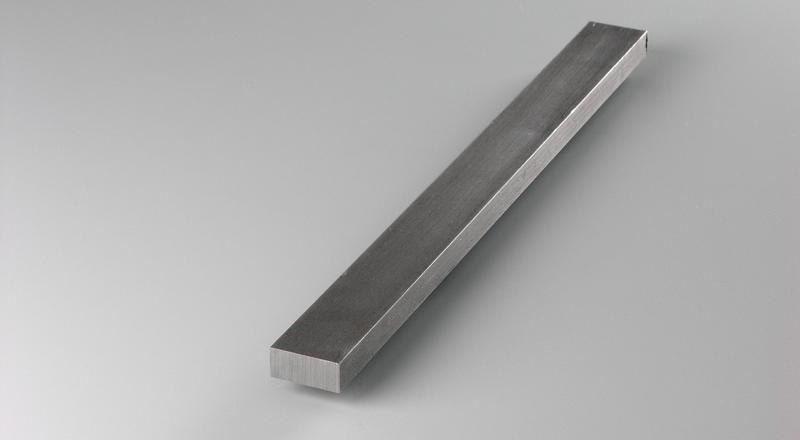

12L14 Cold Rolled Flat Bar

Item Selection
1) Select Thickness:
2) Select Size:
3) {{sizeText}}
Cut in Half?
Please Select your Custom Width Below.
Please Select your Custom Length Below.
4) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
Disclaimer:

Please note: Cold Roll Flat Bar comes in 11' - 13' random lengths.

This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.
Pricing is subject to change. In-store pricing may vary from online pricing.

Description

12L14 cold rolled steel flat bars, or flat stock, are an excellent candidate for most processing techniques. 12L14 cold rolled steel flat bars have a smooth grey oiled surface with sharp defined edges, and accurate dimensions throughout. 12L14 cold roll bars have a higher tensile and yield strength compared to hot rolled bars. 12L14 is a low carbon steel with good case hardening qualities. 12L14 is used extensively in automatic screw machines for manufacturing numerous parts requiring considerable machining and close tolerances, along with a smooth finish. 12L14 can be used to maximum advantage where considerable machining is required, such as bushings, inserts, couplings, and hydraulic hose fittings. With good ductility, 12L14 is suitable for parts involving crimping, bending, or riveting. ASTM A108-07 is the standard specification for steel bar, carbon, hot-wrought, special quality.

Features

ASTM

ASTM A108-07

Characteristics

12L14
Leaded machine stock. Great machining & poor welding.

Alloy

12L14

Specifications

CHEMICAL COMPOSITION

Element Percentage
C 0.15 max
Fe 97.91 - 98.7
Mn 0.85 - 1.15
P 0.04 - 0.09
Pb 0.15 - 0.35
S 0.26 - 0.35



MECHANICAL INFORMATION

  Imperial Metric
Density 0.284 lb/in3 7.87 g/cc
Ultimate Tensile Strength 78,300psi 540 MPa
Yield Tensile Strength 60,200psi 415 MPa



Hardness Brinell 165
Hardness Rockwell B85
Production Method Cold Finish
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES

Size Length Weight
(lbs/ft)
1-1/2" x 2-1/4" 144.00" 12.000
2-1/4" x 3" 144.00" 24.750
2-1/2" x 3-1/4" 144.00" 28.000
