12ga Pickled & Oiled Formed Channels

Item Selection
1) Select Size (Depth x Flange Width x Length):
Please Select your Custom Width Below.
Please Select your Custom Length Below.
2) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity: Quantity Discounts
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
Pricing is subject to change. In-store pricing may vary from online pricing.

Description

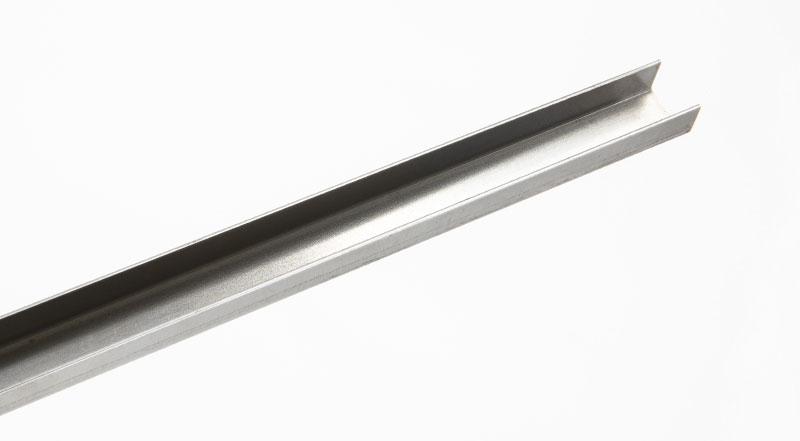

A1011 hot rolled pickled and oiled (P&O) steel formed channel is an excellent candidate for most processing techniques. Fabricated in-house using our precision forming process to ensure consistent bend accuracy, these channels are formed from 12ga. (0.1046”) material. Characterized by a smooth, blue-grey finish, the hot rolled steel material has undergone a “pickling” process, meaning it has been dipped into acid to remove the mill scale from its surface. Once the pickling process is complete a light rust preventative is applied to slow down the corrosion of the material, making the channels paint or powder coat ready. A1011 is considered a commercial quality alloy material; common applications include structural support, trailers, railing, fencing and other architectural uses.

Specifications

DETAILS

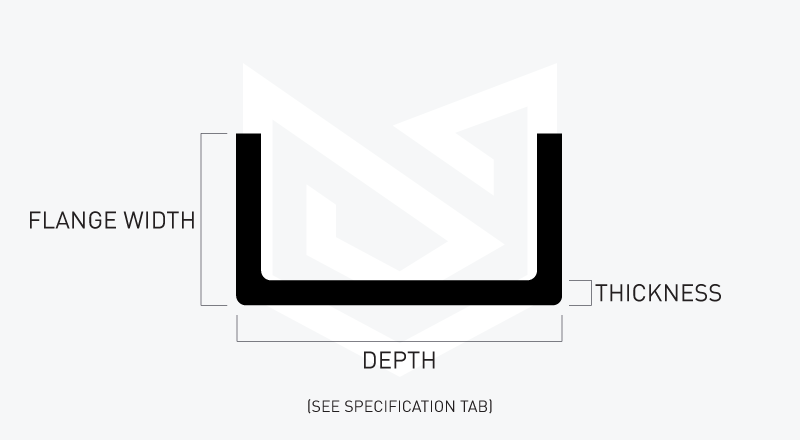

Size Depth Width (Flange) Thickness  Length Each Weight (Lbs)
1" x 1" x 120" 1" 1" 12ga (0.1046") 120" 9.00
1-1/2" x 1" x 120" 1-1/2" 1" 12ga (0.1046") 120" 12.40
2" x 1" x 120" 2" 1" 12ga (0.1046") 120" 12.60
3" x 1-1/2" x 120" 3" 1-1/2" 12ga (0.1046") 120" 19.60
4" x 1-3/4" x 120" 4" 1-3/4" 12ga (0.1046") 120" 24.40
6" x 2" x 120" 6" 2" 12ga (0.1046") 120" 33.00
