110 Copper Square Bar

Item Selection
1) Select Size:
2) {{sizeText}}
Please Select your Custom Width Below.
Please Select your Custom Length Below.
3) Select Your Cut:
  • Selected Width = {{widTotal}}"
  • Selected Length = {{lenTotal}}"
  • Each Weight = {{displayWeight}} lbs
Each Price: ${{Number(displayPrice).toFixed(2).toLocaleString()}}
Please Call for Pricing
Quantity:
This Item is Temporarily Out of Stock
Notify Me when Back in Stock
Please Call for Pricing on this Product
For larger quantity orders, please contact one of our Account Managers.

Pricing is subject to change. In-store pricing may vary from online pricing.

Description

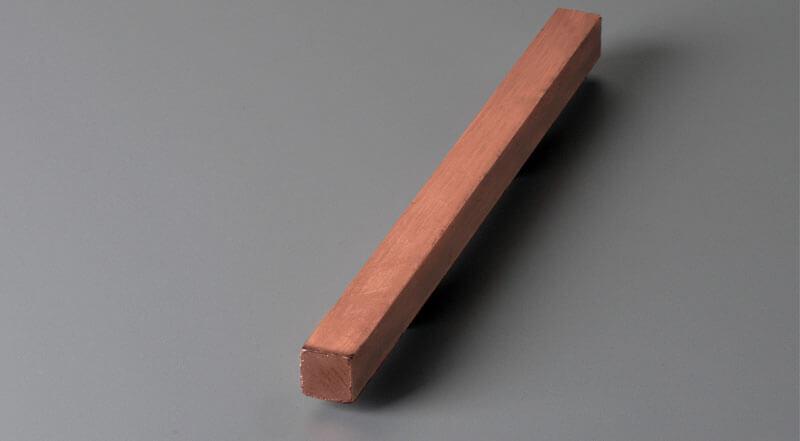

110 Copper square bar is an excellent candidate for some processing techniques as well as both indoor and outdoor applications. When copper is exposed to natural elements, it will patina and develop a greenish or bluish hue over time.  Commonly referred to as Electrolytic Tough Pitch Copper (ETP), copper alloy 110 has great corrosion resistance and conducts electricity. The material is non-magnetic with a semi-smooth surface and defined edges. Copper square bars are commonly used in corrosive environments, electrical work, mechanical or architectural applications, and ornamental projects. ASTM B187 110 copper is a standard specification for copper wiring, busbar, electrical power systems, and installations.

Features

Alloy

110

ASTM

ASTM B187

Characteristics

110
Good forming, drawing, spinning & electrical conductivity. Can be suitable for welding & soldering. Great corrosion resistance.

Specifications

CHEMICAL COMPOSITION

Element Percentage
Cu 99.9
O 0.04



MECHANICAL INFORMATION

  Imperial Metric
Density 0.323 lb/in3 8.94 g/cc
Ultimate Tensile Strength 46,400psi 320 MPa
Yield Tensile Strength 40,600psi 280 MPa
Melting Point 1,950 - 1,980°F 1,070 - 1,080°C



Temper H00,H02
The provided chemical compositions and mechanical properties are general approximations. Please contact our Customer Service Department for material test reports.
Contact Us

Available Sizes

AVAILABLE SIZES

Size Length Weight
(lbs/ft)
1/4" 144.00" 0.240
3/8" 144.00" 0.540
1/2" 144.00" 0.970
3/4" 144.00" 2.180
1" 144.00" 3.960
1-1/4" 144.00" 6.060
1-1/2" 144.00" 8.730
2" 144.00" 15.500
